Zhejiang Dai lub tshuab luam ntawv Co., Ltd. yog ib qho ntawm feem txhim khu kev qha manufacturers thiab lwm tus neeg ntawm 1050gc zaj duab xis laminating tshuab nyob rau hauv Suav teb. Yog tias koj yuav mus yuav bulk luv nqi 1050gc zaj duab xis laminating tshuab, txais tos kom tau txais cov lus hais los ntawm peb lub hoobkas. Tag nrho cov tshuab customized yog nrog cov khoom zoo thiab cov nqi sib tw.
Technical Parameter
|
Max.Paper Dimensions |
1200mm × 1050mm |
|
Min.Paper Dimensions |
270mm × 340 hli |
|
Laminating Ceev |
5m-100m / min |
|
Lub zog tag nrho |
65 kwv |
|
Zuag qhia tag nrho Dimensions |
10m×2.7m×2.65m |
|
Zuag qhia tag nrho |
7500kg ib |
Cov khoom siv Display

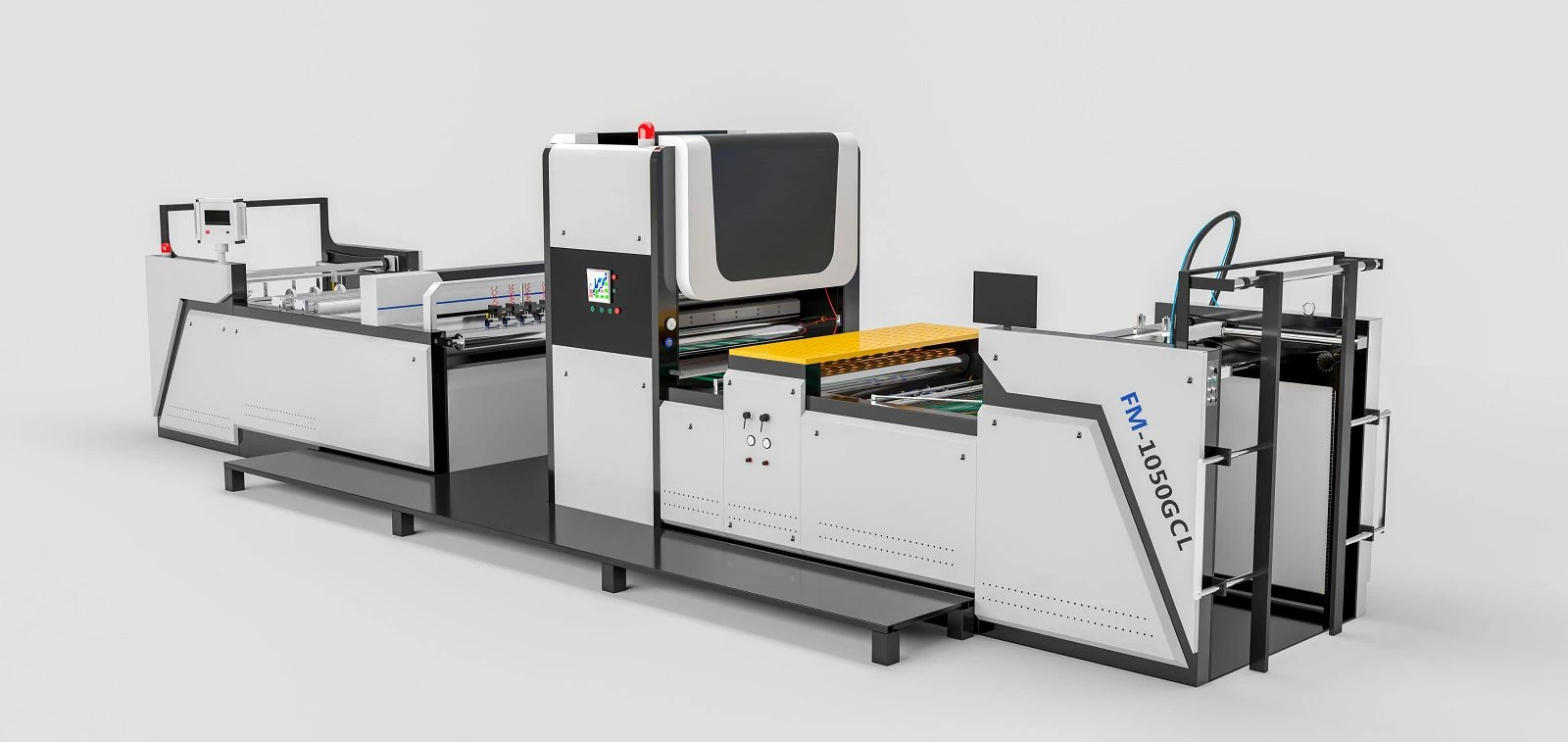

FM-1050GC Siab Tsis Siv Neeg High-Speed Powder Tshem Tawm Laminating Tshuab Haum rau
Cov ntawv luam tawm cov khoom
Lag luam Promotional Paper Products
Cov ntawv tshaj tawm thiab cov khoom siv hauv chaw ua haujlwm
Main Configuration thiab Technical Description ntawm lub tshuab
|
Phab ntsa Phaj Processing Technology |
Lub 45 steel yog cua sov- kho thiab machined, nrog rau lub chaw machining ua tiav cov txheej txheem. |
|
Main Tsav thiab Reducer |
Siemens lossis Zhejiang Yibang (yeem) |
|
Sib Nqus Hmoov Nres |
Taiwan STEK, nruab nrog tus tswj hwm, tso cai rau kev hloov kho raws li qib nro ntawm cov nplaum zaj duab xis. |
|
Pneumatic Cheebtsam: |
Taiwan AdTech |
|
Photoelectric Detection: |
Nyiv Omron Electric thiab Nyiv Panasonic Electric (Telemecanqu) |
|
Hauv qab Roller Pressure Control System:: |
Imported tsis siv neeg hydraulic system los ntawm Taiwan rau kev tswj qhov tsis siv neeg nqa thiab txo qis ntawm nias roj hmab rollers, nrog cov khoom siv hluav taws xob tuaj yeem ua kom muaj kev ruaj ntseg zoo. |
|
Main Roller Heating Method: |
Lub 380 siab rau cov menyuam siv tshuab hluav taws xob cua sov tshuab nrog rau cov menyuam cov cua sov thiab cov roj- raws li qhov ntsuas kub, muaj cov cua kub ceev, tswj qhov kub thiab txias, thiab kev nyab xeeb siab. |
Zuag qhia tag nrho
Cov Khoom Siv Teeb Meem: Muab cov ntawv laminated kom huv si ntawm lub rooj noj mov, thiab kho lub rooj qhov siab mus rau 5 hli hauv qab daim ntawv baffle. Mount lub laminated zaj duab xis yob rau ntawm zaj duab xis - tso cua tshuab, xauv nws nyob rau hauv qhov chaw nrog ib tug nias thiab ib tug nias, ces rub cov zaj duab xis mus rau cov kev taw qhia rollers ntawm lub ntsiab laminating tshuab thiab kho nws raws li daim duab threading. Kho qhov nro ntawm zaj duab xis ncej kom tsis txhob loosening thiab deviation.
Parameter Debugging: Teem tsis tau los ntawm kev tswj vaj huam sib luag. Kho qhov kub ntawm lub laminating cov menyuam mus rau qhov tsim nyog ntau yam (feem ntau 70-100 degree) raws li cov khoom siv zaj duab xis. Teem lub slitting ntev raws li daim ntawv loj, thiab kho lub siab ntawm cov hlua khi rau tib lub sijhawm kom nruj lamination hauv kev ua haujlwm tom ntej. Daim duab yog raws li nram no:
Cov qauv thiab kev ua haujlwm ntawm txhua ntu
Feeder Daim Ntawv Pub Ntu
Tom qab lub tshuab tau pib, lub feeder ntawv pub zaub mov tswj lub sij hawm ntawm nqus thiab tshuab cua los ntawm ib tug conjugate cam. Lub tshuab nqus tsev nqus nqus nqus nqus ib daim ntawv ntawm ib daim ntawv, uas tom qab ntawd xa los ntawm ob txoj siv dav. Cov hlua khi yuav tsum tsis muaj kev hloov kho ntau zaus thaum lub sijhawm xa khoom. Daim ntawv no raug xa mus rau qhov kev taw qhia txoj hauj lwm los ntawm txoj kev xa khoom, npaj rau kev tshem tawm cov hmoov tom ntej thiab laminating, thiab tiv thaiv daim ntawv skew los ntawm kev cuam tshuam rau kev ua tiav.
Feeder Ntawv Pub
Conjugate cam thev naus laus zis tau txais los tswj lub sijhawm ntawm huab cua tshuab thiab nqus, ua kom siab -paj ntawv ceev. Cov ntawv pub zaub mov yog nruab nrog ua ntej -paper loading mechanism uas tso cai rau cyclic ntawv noj yam tsis tau nres lub tshuab. Lub caij no, daim ntawv yog pub los ntawm lub tshuab nqus tsev nqus thiab xa los ntawm ob txoj siv dav yam tsis muaj kev hloov kho.
- Powder Removal Device: Nws txais ib tug qauv ntawm ob tug txhuam hniav tshem tawm thiab nias hmoov tshem tawm kom tshem tawm cov plua plav ntawm daim ntawv. Nyob rau hauv thawj kauj ruam ntawm txhuam hmoov tshem tawm, raws li daim ntawv hla dhau txoj siv conveyor, cov txhuam cov menyuam thiab cov kab txhuam rotate synchronously txhuam tawm cov plua plav ntab saum npoo. Nyob rau tib lub sijhawm, lub tshuab nqus tsev nqus tau pib kos cov hmoov av txhuam mus rau hauv cov plua plav collector kom tso tawm raws sijhawm. Hauv cov kauj ruam thib ob ntawm kev tshem tawm cov hmoov nplej, daim ntawv tom qab txhuam hniav dhau los ntawm lub tshuab hluav taws xob cua sov siab rau cov menyuam, qhov chaw uas cov plua plav seem yog compacted los yog ntxiv adsorbed nyob rau hauv qhov kub thiab txias siab, tiv thaiv npuas thiab delamination tom qab lamination los ntawm hmoov av.
Core Laminating Section: Ua kom muaj kev sib raug zoo ntawm daim ntawv thiab zaj duab xis. Ntawm ib sab tes, lub hard chrome composite roller nrog ua - hauv hluav taws xob cua sov system tswj qhov kub thiab txias kom ntseeg tau tias txawm tias cua sov ntawm zaj duab xis. Ntawm qhov tod tes, huab cua - hydraulic booster ua ke nrog hydraulic lub tog raj kheej muab kev ruaj khov siab rau cov laminating roller. Daim ntawv thiab nro-tswj zaj duab xis nkag mus rau ntawm ob lub rollers ib txhij, thiab zaj duab xis sib raug zoo nrog cov ntawv nyob rau hauv qhov sib xyaw ua ke ntawm qhov kub thiab txias. Nyob rau tib lub sij hawm, lub unwinding ncej nrog sib nqus hmoov nres tuav ruaj khov zaj duab xis nro los tiv thaiv zaj duab xis wrinkling.

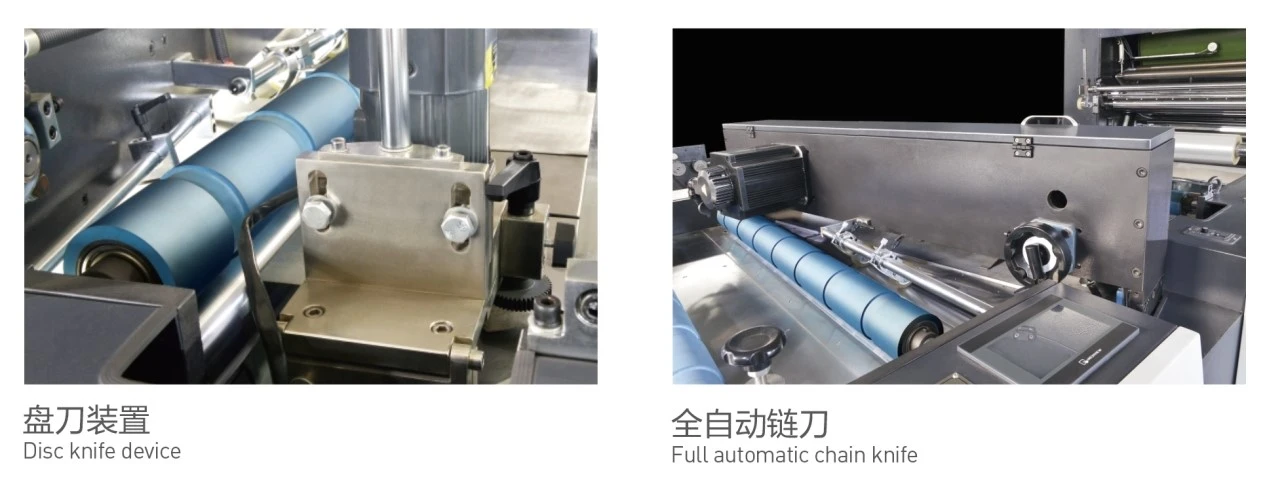

Tsis Siv Neeg Slitting Tshooj: Cov ntawv laminated yog nyob rau hauv lub xeev tas mus li thiab yuav tsum tau txiav rau qhov loj me me. Lub teb disc slitting ntaus ntawv ntawm cov qauv no yog nruab nrog 4 txheej ntawm finely adjustable hniav, uas ua hauj lwm cia li raws li daim ntawv ntev teem ua ntej.Daim ntawv ntawm 128g los yog saum toj no yuav slitted online ncaj qha. Rau kev ua cov ntawv nyias, cov ntawv rov qab tuaj yeem qhib tau los pab, tiv thaiv kev deformation thiab curling ntawm nyias daim ntawv thaum slitting. Cov npoo ntawm daim ntawv yog huv si thiab burr -dawb tom qab slitting.
Daim Ntawv Xa Khoom & Txheej Txheej: Cov ntawv hlais nkag mus rau hauv lub tshuab nqus tsev xa ntawv thiab tseem nyob ruaj khov thaum thauj khoom. Cov ntawv xa khoom yog nruab nrog 4 pawg ntawm sab lifting mechanisms thiab 1 set ntawm rear jogging mechanism. Thaum daim ntawv xa mus rau lub rooj xa khoom, sab lifting mechanisms tiv thaiv daim ntawv skew, thiab lub rear jogging mechanism aligns lub rear ntug ntawm daim ntawv. Nyob rau tib lub sijhawm, daim ntawv nias thiab yoj- tiv thaiv cov txheej txheem txhim kho cov ntawv nruj, ua kom cov txheej txheem zoo nkauj txawm tias ntev ntev ntawm daim ntawv, yog li ua tiav tag nrho cov txheej txheem lamination.
